Since I was irritated by the qubes gui regarding the memory usage of its qubes as well as the outputs of xentop I had a look into the topic and ended up with qmemman and xenstore.
The widget displays the actual memory used by each domain as well as the dynamic targeted value for memory allocation by qmemman and the max value.
Since “new users can not upload attachments” - I put it on pastebin
(thanks and hate to Claude for creating it with me)
Edit:
widget.tar.gz (1.1 KB)
@balder86 thanks!
Script from pastebin
#!/bin/bash
# Qubes Memory Monitor for XFCE Generic Monitor
# Displays memory allocation via xenstore paths
# Convert KB to GB with one decimal
kb_to_gb() {
local kb=$1
if [ -z "$kb" ] || [ "$kb" = "0" ]; then
echo ".0"
else
local result=$(awk "BEGIN {printf \"%.1f\", $kb/1048576}")
echo "$result" | sed 's/^0\./\./'
fi
}
mb_to_gb() {
local mb=$1
if [ -z "$mb" ] || [ "$mb" = "0" ]; then
echo ".0"
else
local result=$(awk "BEGIN {printf \"%.1f\", $mb/1024}")
echo "$result" | sed 's/^0\./\./'
fi
}
# Initialize totals
total_meminfo=0
total_target=0
total_static_max=0
# Build tooltip
tooltip=""
# Get all running domains including dom0
while read vm_name domid rest; do
if [ -z "$vm_name" ] || [ -z "$domid" ]; then
continue
fi
if [ "$domid" = "0" ]; then
vm_name="dom0"
fi
# Read xenstore memory values
meminfo_kb=$(xenstore-read /local/domain/$domid/memory/meminfo 2>/dev/null || echo "0")
target_kb=$(xenstore-read /local/domain/$domid/memory/target 2>/dev/null || echo "0")
static_max_kb=$(xenstore-read /local/domain/$domid/memory/static-max 2>/dev/null || echo "0")
# Convert to GB
meminfo_gb=$(kb_to_gb $meminfo_kb)
target_gb=$(kb_to_gb $target_kb)
static_max_gb=$(kb_to_gb $static_max_kb)
# Add to totals (skip if values are 0)
if [ "$meminfo_kb" != "0" ]; then
total_meminfo=$((total_meminfo + meminfo_kb))
fi
if [ "$target_kb" != "0" ]; then
total_target=$((total_target + target_kb))
fi
if [ "$static_max_kb" != "0" ]; then
total_static_max=$((total_static_max + static_max_kb))
fi
# Add to tooltip with column alignment
tooltip="${tooltip}$(printf '%-20s %5s %5s %5s' "$vm_name" "$meminfo_gb" "$target_gb" "$static_max_gb")\n"
done < <(xl list | tail -n +2)
# Get system total memory
system_total_mb=$(xl info | grep total_memory | awk '{print $3}')
system_total_gb=$(mb_to_gb $system_total_mb)
# Convert totals to GB
total_meminfo_gb=$(kb_to_gb $total_meminfo)
total_target_gb=$(kb_to_gb $total_target)
total_static_max_gb=$(kb_to_gb $total_static_max)
# Add header and footer to tooltip
header="<span font_desc='monospace'>"
header="${header}$(printf '%-20s %5s %5s %5s' 'domain' 'act' 'tgt' 'max')\n"
header="${header}$(printf '%s' '────────────────────────────────────────────────')\n"
footer="$(printf '%s' '────────────────────────────────────────────────')\n"
footer="${footer}$(printf '%-20s %5s %5s %5s' 'TOTAL' "$total_meminfo_gb" "$total_target_gb" "$total_static_max_gb")\n"
footer="${footer}$(printf '%-20s %5s' 'System Total' "$system_total_gb")"
footer="${footer}</span>"
tooltip="${header}${tooltip}${footer}"
# Output for genmon
echo "<txt> $total_meminfo_gb / $total_target_gb / $total_static_max_gb / $system_total_gb </txt>"
echo -e "<tool>$tooltip</tool>"
@balder86 Write how to create a widget for XFCE
@alimirjamali Hello. What command/script qui‑domains use for CPU monitoring? I will try to create a conky theme from this ram script and qui‑domains
I made a slight improvement and updated the attachment and pastebin link.
The old version would report the qmemman max value as max. But the real max is the one set by qubes

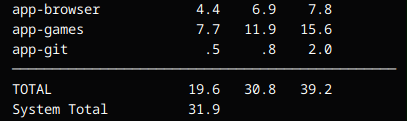

With the change the real max value of 16G gets reported. Showing off the over provisioning of the available memory

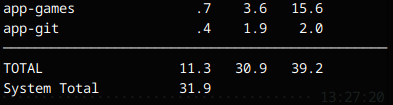

And if looking app-browser, the dynamic change of the target value from 7.8 → 6.9
#!/bin/bash
# Qubes Memory Monitor for XFCE Generic Monitor
# Displays memory allocation via xenstore paths
# Convert KB to GB with one decimal
kb_to_gb() {
local kb=$1
if [ -z "$kb" ] || [ "$kb" = "0" ]; then
echo ".0"
else
local result=$(awk "BEGIN {printf \"%.1f\", $kb/1048576}")
echo "$result" | sed 's/^0\./\./'
fi
}
mb_to_gb() {
local mb=$1
if [ -z "$mb" ] || [ "$mb" = "0" ]; then
echo ".0"
else
local result=$(awk "BEGIN {printf \"%.1f\", $mb/1024}")
echo "$result" | sed 's/^0\./\./'
fi
}
# Initialize totals
total_act=0
total_tgt=0
total_max=0
# Build tooltip
tooltip=""
# Get all running domains including dom0
while read vm_name domid rest; do
if [ -z "$vm_name" ] || [ -z "$domid" ]; then
continue
fi
if [ "$domid" = "0" ]; then
vm_name="dom0"
fi
# Read xenstore memory values
tgt_kb=$(xenstore-read /local/domain/$domid/memory/target 2>/dev/null || echo "0")
act_kb=$(xenstore-read /local/domain/$domid/memory/meminfo 2>/dev/null)
static_max_kb=$(xenstore-read /local/domain/$domid/memory/static-max 2>/dev/null)
hotplug_max_kb=$(xenstore-read /local/domain/$domid/memory/hotplug-max 2>/dev/null)
act_kb="${act_kb:-${tgt_kb:-0}}"
max_kb="${hotplug_max_kb:-${static_max_kb:-0}}"
# Convert to GB
act_gb=$(kb_to_gb $act_kb)
tgt_gb=$(kb_to_gb $tgt_kb)
max_gb=$(kb_to_gb $max_kb)
# Add to totals (skip if values are 0)
if [ "$act_kb" != "0" ]; then
total_act=$((total_act + act_kb))
fi
if [ "$tgt_kb" != "0" ]; then
total_tgt=$((total_tgt + tgt_kb))
fi
if [ "$max_kb" != "0" ]; then
total_max=$((total_max + max_kb))
fi
# Add to tooltip with column alignment
tooltip="${tooltip}$(printf '%-20s %5s %5s %5s' "$vm_name" "$act_gb" "$tgt_gb" "$max_gb")\n"
done < <(xl list | tail -n +2)
# Get system total memory
system_total_mb=$(xl info | grep total_memory | awk '{print $3}')
system_total_gb=$(mb_to_gb $system_total_mb)
# Convert totals to GB
total_act_gb=$(kb_to_gb $total_act)
total_tgt_gb=$(kb_to_gb $total_tgt)
total_max_gb=$(kb_to_gb $total_max)
# Add header and footer to tooltip
header="<span font_desc='monospace'>"
header="${header}$(printf '%-20s %5s %5s %5s' 'domain' 'act' 'tgt' 'max')\n"
header="${header}$(printf '%s' '────────────────────────────────────────────────')\n"
footer="$(printf '%s' '────────────────────────────────────────────────')\n"
footer="${footer}$(printf '%-20s %5s %5s %5s' 'TOTAL' "$total_act_gb" "$total_tgt_gb" "$total_max_gb")\n"
footer="${footer}$(printf '%-20s %5s' 'System Total' "$system_total_gb")"
footer="${footer}</span>"
tooltip="${header}${tooltip}${footer}"
# Output for genmon
echo "<txt> $total_act_gb / $total_tgt_gb / $total_max_gb / $system_total_gb </txt>"
echo -e "<tool>$tooltip</tool>"
