Qubes-mirage-firewall v0.9.5

I am happy to announce that the latest release of Qubes Mirage Firewall has just been released (0.9.5).

In addition to ecosystem and compiler updates, this release update ARP entry behavior: the unikernel now responds with its MAC address for every APR request from a client. This fixes issues with some VPN clients (#221). Also, this version update HVM client handling: HVM Clients, such as Windows, have two network interfaces but only use one. This causes deadlock states because the connection protocol for one interface is not completed, leading the unikernel to wait for the client to shut down. Now, each connection uses its own thread, and the unikernel can handle Windows HVM (#219).

You can update either manually (local compilation with podman/docker, or download from github, check hashsum, copy to dom0) or with the salt formula available on the github repository, or with @ben-grande or @unman’s repositories.

If you have any comments, please let us know, on this forum or on github.

6 Likes

Build with docker following instructions, and tried to start results in following error


These are logs from guest/mirage-firewall.log

The additional arguments are provided by Qubes for linux kernels, you need to set no-default-kernelopts (see GitHub - mirage/qubes-mirage-firewall: A Mirage firewall VM for QubesOS).

Actually error in build process failed to get extra source ocaml-config.install I think I didn’t check build process and did everything after trying again I am having error during build with both docker and podman

I am already using it (for the 1st time) and it is working without any issues

Was it ever considered to add rpmspec / builder config to it, have it available as a proper independent easy to install rpm package? (even as a part of qubes-contrib repo)

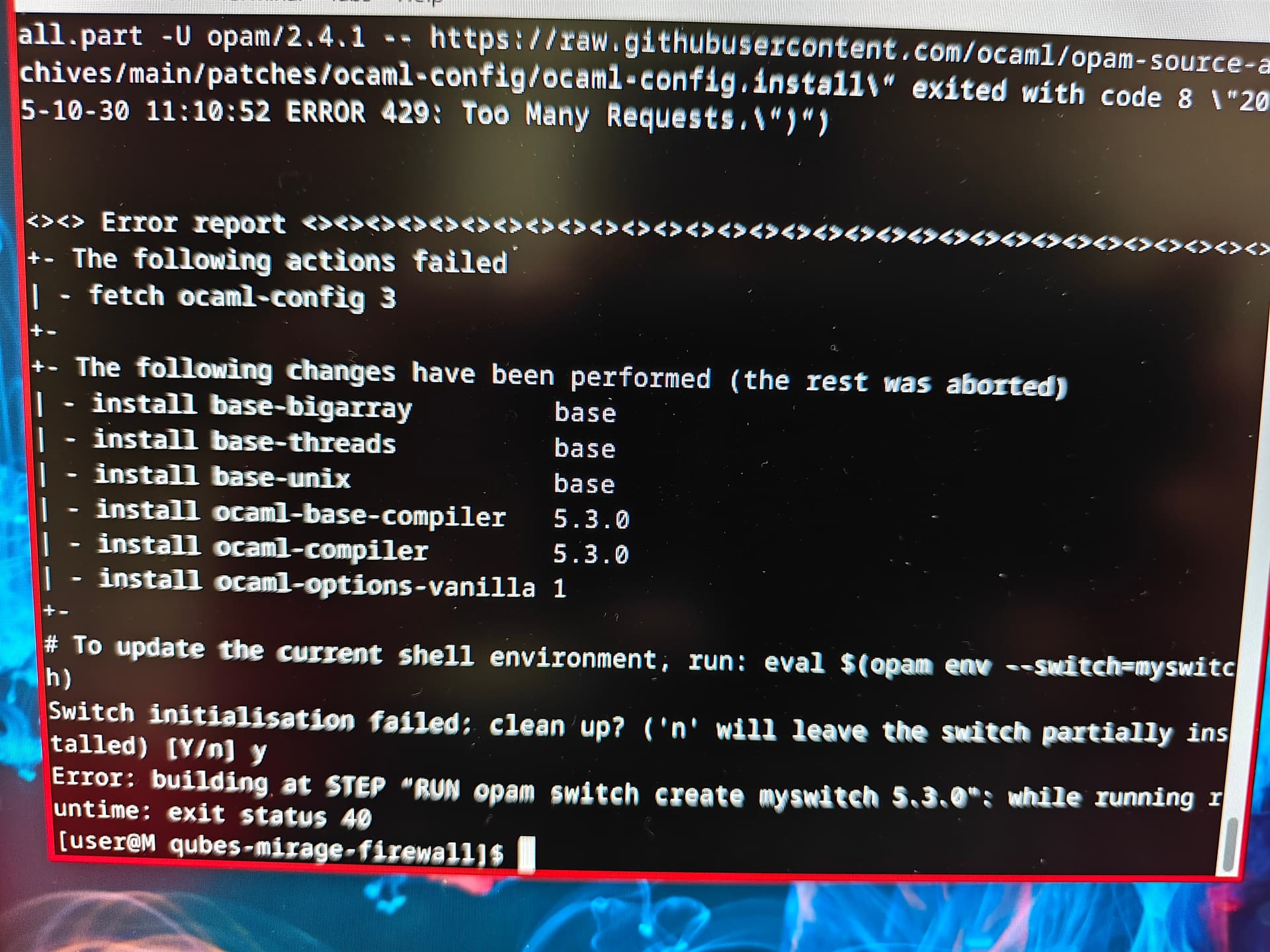

Did you build or downloaded directly from GitHub.my build process keep failing at fetch ocaml config 3 step Run opam switch create my switch 5.3.0

I downloaded the pre-built uni-kernel from Github. But I will try to build it myself and report back.

You are not trying to fetch via Tor?

No

The command at the top of your screenshot shows a failure due to too many requests. Maybe there is other people that use GH on your local net, or maybe it should work after a delay?
Podman or Docker should cache a lot of work, so a succesful build should already have a working ocaml.

It would be great to have rpm in qubes-contrib repo. Last time I tried there was issues installing such rpm builded with qubes-builder-mirage (and anyway that was builderv1) :frowning:

I can confirm that 0.9.5 is working fine but not tested with Windows HVM.

> Disregard <

Doing a manual deployment and…

qvm-run -p mirage-firewall 'cat mirage-firewall/qubes-firewall.xen' > vmlinuz

Gets me the following error:

mirage-firewall: Start failed: internal error: libxenlight failed to create new domain 'mirage-firewall', see /var/log/libvert/libxl/libxl-driver.log for details

The appVM is named “mirage-firewall”.

The log shows “The kernel doesn’t support reset from sysfs for PCI device ####” (#### means it’s showing a bunch of different PCI devices).

Update: I’m an idiot – just swapped the file locations from dom0 to a dispVM I copied the files to and it worked. But now I’m having different issue.

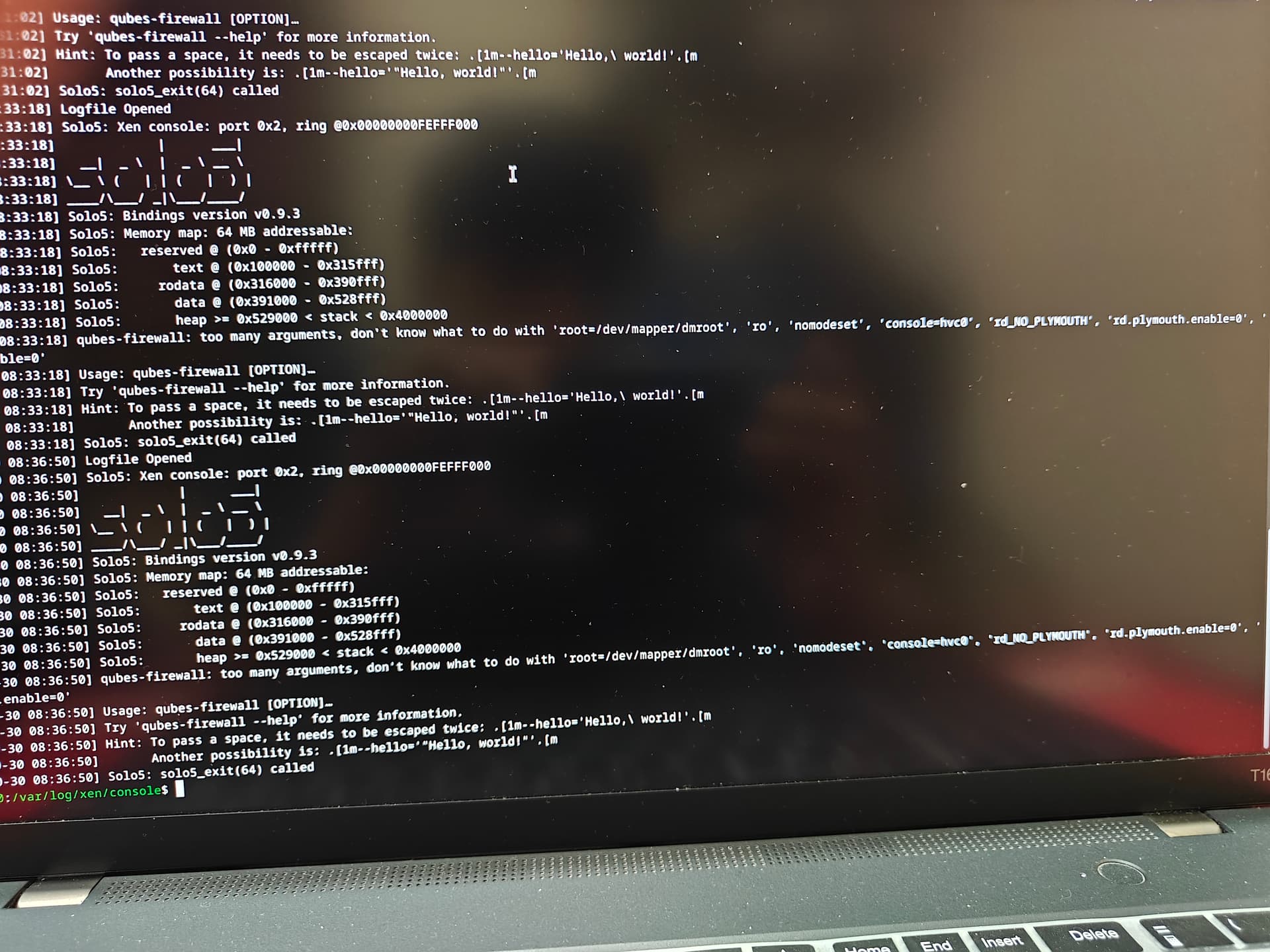

When I run the mirage-firewall VM, it shuts down immediately and logs give me this:

[2025-10-31 17:00:31] Logfile Opened
[2025-10-31 17:00:31] Solo5: Xen console: port 0x2, ring @0x00000000FEFFF000
[2025-10-31 17:00:31]             |      ___|
[2025-10-31 17:00:31]   __|  _ \  |  _ \ __ \
[2025-10-31 17:00:31] \__ \ (   | | (   |  ) |
[2025-10-31 17:00:31] ____/\___/ _|\___/____/
[2025-10-31 17:00:31] Solo5: Bindings version v0.9.3
[2025-10-31 17:00:31] Solo5: Memory map: 32 MB addressable:
[2025-10-31 17:00:31] Solo5:   reserved @ (0x0 - 0xfffff)
[2025-10-31 17:00:31] Solo5:       text @ (0x100000 - 0x315fff)
[2025-10-31 17:00:31] Solo5:     rodata @ (0x316000 - 0x390fff)
[2025-10-31 17:00:31] Solo5:       data @ (0x391000 - 0x528fff)
[2025-10-31 17:00:31] Solo5:       heap >= 0x529000 < stack < 0x2000000
[2025-10-31 17:00:31] qubes-firewall: too many arguments, don't know what to do with 'root=/dev/mapper/dmroot', 'ro', 'nomodeset', 'console=hvc0', 'rd_NO_PLYMOUTH', 'rd.plymouth.enable=0', 'plymouth.enable=0'
[2025-10-31 17:00:31] Usage: qubes-firewall [OPTION]
[2025-10-31 17:00:31] Try 'qubes-firewall --help' for more information.
[2025-10-31 17:00:31] Hint: To pass a space, it needs to be escaped twice: .[1m--hello='Hello,\ world!'.[m
[2025-10-31 17:00:31]       Another possibility is: .[1m--hello='"Hello, world!"'.[m
[2025-10-31 17:00:31] Solo5: solo5_exit(64) called

Edit again:

I just need to slow down :sweat_smile:

This resolved my issue!

For some reason running the entire command at once didn’t include those two lines at the end.
