Some questions regarding setting up sys-gui-vnc

User Support General
1

:wave: Hey!

I’m trying to set up sys-gui-vnc, but I’m having trouble understanding the Qubes documentation. Despite finding it well-written and having read most of it, I feel like this topic is lacking in detail. I have so many questions :thinking:.

First, I’ve executed these commands:

sudo qubesctl top.enable qvm.sys-gui-vnc
sudo qubesctl top.enable qvm.sys-gui-vnc pillar=True
sudo qubesctl --all state.highstate
sudo qubesctl top.disable qvm.sys-gui-vnc
qvm-start sys-gui-vnc

Now, I need to create a RPC policy allow connection from sys-remote.
Q1. What should be the correct RPC policy line?

I’ve somehow botched the configuration enough to get to the login screen in VNC viewer in sys-remote for testing.
I should then bind any local port in sys-remote to the sys-gui-vnc port 5900 using qvm-connect-tcp. I can do that according to the Q1. answer.

By now, I’ve also added the password to the login user in sys-gui-vnc, and I’ve installed tigervnc as a persistent application in sys-remote. (My ultimate goal is to connect to sys-remote via a Wi-Fi hotspot run by sys-remote from my laptop.)

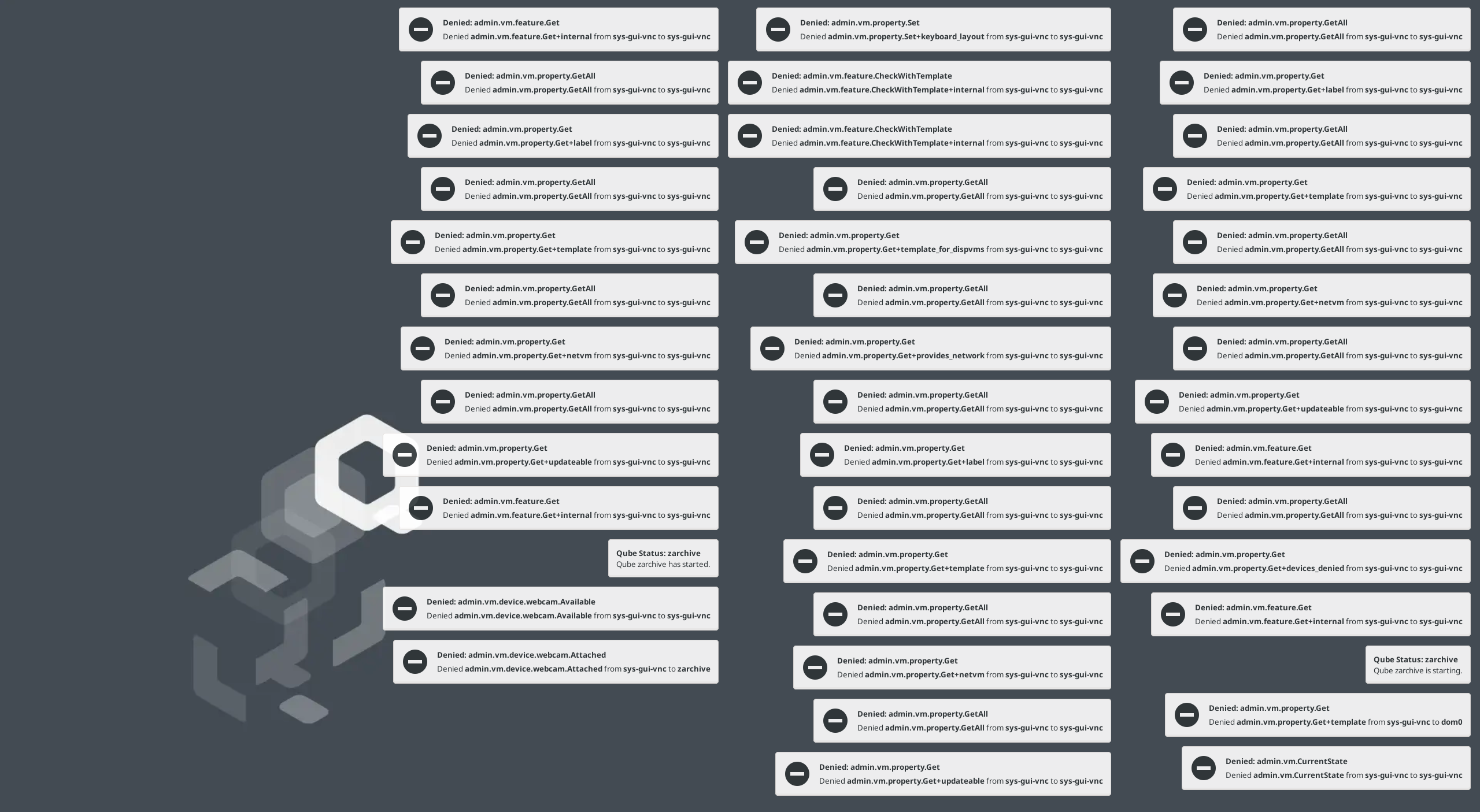

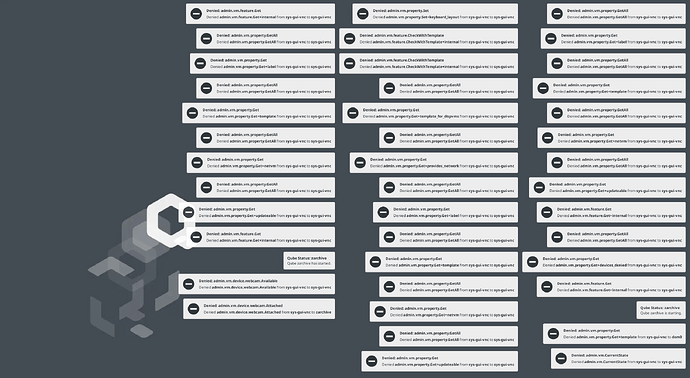

When I log in, I get a bunch of error notifications (Denied from sys-gui-vnc to dom0):

  • Denied: admin.vm.property.GetAll
  • Denied: admin.vm.device.pci.Assigned
  • Denied: admin.vm.device.block.Available
  • Denied: admin.vm.device.usb.Available
  • Denied: admin.vm.device.webcam.Available
  • Denied: admin.vm.feature.Get+update-available
  • Denied: admin.vm.device.block.Attached
  • Denied: admin.vm.device.usb.Attached
  • Denied: admin.vm.device.mic.Attached
  • Denied: admin.vm.device.webcam.Attached
  • Denied: admin.vm.feature.Get+device-attach-with-mic
  • Denied: admin.vm.feature.Get+hide-children :worried:
  • Denied: admin.vm.feature.CheckWithTemplate+internal
  • Denied: admin.vm.feature.Get+appmenus-dispvm

Q2. What should be the correct RPC policies to fix these errors?

Again, I’ve kind of botched these errors again by adding RPC policy:

* * sys-gui-vnc @adminvm allow

Finally, I’m not getting any VMs displaying in the app menu instead of sys-gui-vnc and dom0
Q3. What is the problem now, and how to fix it?

Q4. (Optional) Is my setup any good? How would you have done it?

2

I’m still scratching my head with this one. I would be very grateful for any insights you can share.

3

:confused: Bump again

4

Well, I have a few answers.

qubes.ConnectTCP * sys-remote @deafult allow target=sys-gui-vnc

qvm-connect-tcp 5900:@default:5900

According to #10025, I have used jmynes’ policies and these errors are gone.

This is fixed by using above policies.

I have one more question. Like I can change qvm-prefs vm-name guivm sys-gui-vnc, which qubes should I change that for? I’m concerned that if I set it to all, then I won’t be able to use my system with just my monitor.
I experimented with the AppVM’s parent TemplateVM, but it didn’t work (nothing appears, except that the template starts). Also, none of my qubes’ applications are displaying in sys-gui-vm (if that’s related to this).

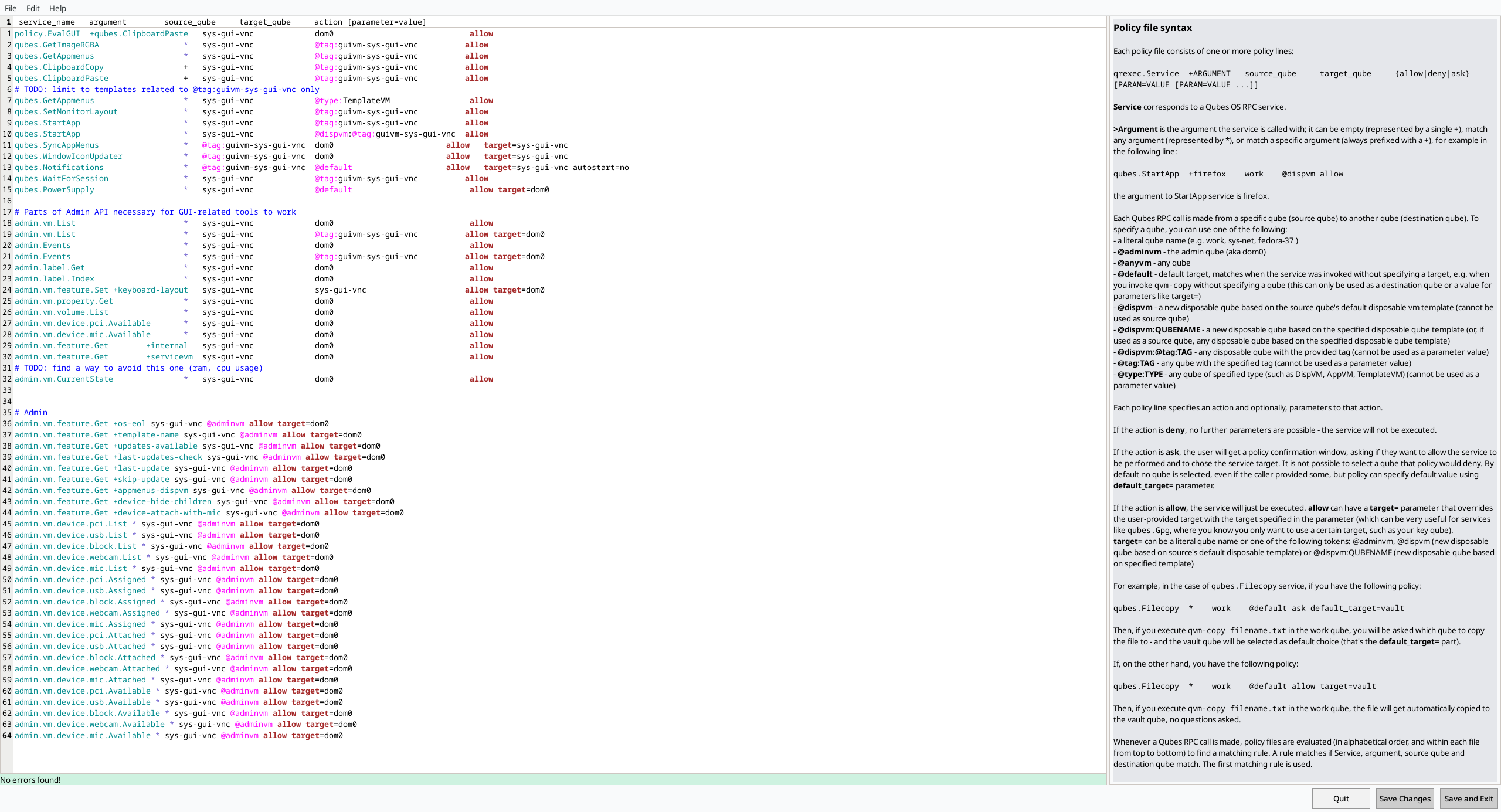

My policies:

Screenshot
Screenshot2560×1385 609 KB

1 Like
5

I am watching here (lurking), and planning to try sys-gui-xxxx soon.

I tested before with sys-gui, more than 1-2 years ago. I did not yet find my notes, so the following is only memory. I do not want to waste your time, but maybe it can help…

I found it was helpful to use the special tags to help with making it usable - “created-by-sys-gui” and “managed-by-sys-gui” - maybe there were even some existing policies. For your tests, “xxxx-by-sys-gui-vnc”… as suggested by the docs.

I remember (maybe) it was convenient to clone some templates, and give “managed-by” tag, and then it was possible to create and manage a set of AppVMs inside sys-gui. It was also possible for sys-gui to see and administer an AppVM, but not its Template - it seemed very clever for compartmentalisation.
Also quite cool: qubes could use service qubes like sys-firewall etc, without them being accessible in the sys-gui.

There is a little information here:
https://doc.qubes-os.org/en/latest/developer/services/admin-api.html#tags
I think I also spent some time reading code & policy files, to understand the details.

1 Like
6

I’m still stuck. I failed to mention in my last reply that while VMs do show in the app menu, nothing was actually working. I experimented with tag managed-by-sys-gui-vm and while some things worked, much of it didn’t. I do think the concept is sound and I will use tags when the basic setup is working.

admin.vmclass.List 		* 						sys-gui-vnc	@adminvm					allow

admin.vm.List 			* 						sys-gui-vnc	@adminvm					allow
admin.vm.List 			* 						sys-gui-vnc	sys-gui-vnc					allow

admin.vm.Create.AppVM 		* 						sys-gui-vnc	@adminvm					allow
admin.vm.Create.TemplateVM 	* 						sys-gui-vnc	@adminvm					allow
admin.vm.Create.StandaloneVM 	* 						sys-gui-vnc	@adminvm					allow
admin.vm.Create.DispVM 		* 						sys-gui-vnc	@adminvm					allow

admin.vm.CreateInPool.AppVM 	* 						sys-gui-vnc	@adminvm					allow
admin.vm.CreateInPool.TemplateVM * 						sys-gui-vnc	@adminvm					allow
admin.vm.CreateInPool.StandaloneVM * 						sys-gui-vnc	@adminvm					allow
admin.vm.CreateInPool.DispVM 	* 						sys-gui-vnc	@adminvm					allow

admin.vm.CreateDisposable 	* 						sys-gui-vnc	@type:TemplateVM				allow

admin.vm.Remove 		* 						sys-gui-vnc	@anyvm	allow

admin.label.List 		* 						sys-gui-vnc	@adminvm					allow

admin.label.Create 		* 						sys-gui-vnc	@adminvm					allow

admin.label.Get 		* 						sys-gui-vnc	@adminvm					allow

admin.label.Index 		* 						sys-gui-vnc	@adminvm					allow

admin.label.Remove 		+label 						sys-gui-vnc	@adminvm					allow

# admin.property.List 		* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.Get 		* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.GetAll 	* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.Help 		* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.HelpRst 	* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.Reset 		* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

# admin.property.Set 		* 						sys-gui-vnc 	@adminvm 					allow # don't manage dom0

admin.vm.property.List 		* 						sys-gui-vnc 	@adminvm 					allow

admin.vm.property.Get 		+keyboard_layout 				sys-gui-vnc 	@adminvm 					allow
admin.vm.property.Get 		+label 		 				sys-gui-vnc 	@adminvm 					allow
admin.vm.property.Get 		* 		 				sys-gui-vnc 	@tag:admin-vm-tag 				allow target=sys-gui-vnc
admin.vm.property.Get 		+kernel 	 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.property.Get 		+installed_by_rpm 		 		sys-gui-vnc 	@type:TemplateVM:AppVM 				allow
admin.vm.property.Get 		+label 		 				sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.vm.property.Get 		+name 		 				sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.vm.property.Get 		+qid 		 				sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.vm.property.Get 		+uuid 		 				sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.vm.property.Get 		+guivm 		 				sys-gui-vnc 	@type:TemplateVM:AppVM 				allow
admin.vm.property.Get 		+template_for_dispvms	 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.property.Get 		+netvm 		 				sys-gui-vnc 	@type:AppVM:DispVM:StandaloneVM 		allow
admin.vm.property.Get 		+template 	 				sys-gui-vnc 	@type:AppVM:DispVM 				allow
admin.vm.property.Get 		+autostart 	 				sys-gui-vnc 	@type:DispVM 					allow
admin.vm.property.Get 		+dispid 	 				sys-gui-vnc 	@type:DispVM 					allow
admin.vm.property.Get 		+maxmem 	 				sys-gui-vnc 	@type:DispVM:StandaloneVM 			allow
admin.vm.property.Get 		+memory 	 				sys-gui-vnc 	@type:DispVM:StandaloneVM 			allow
admin.vm.property.Get 		+provides_network  				sys-gui-vnc 	@type:DispVM:StandaloneVM 			allow
admin.vm.property.Get 		+vcpus 		 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.property.Get 		+virt_mode 	 				sys-gui-vnc 	@type:DispVM:StandaloneVM 			allow
admin.vm.property.Get 		+default_dispvm	 				sys-gui-vnc 	@type:AppVM 					allow
admin.vm.property.Get 		+keyboard_layout 				@anyvm 		sys-gui-vnc 					allow
admin.vm.property.Get 		+label 		 				@anyvm 		sys-gui-vnc 					allow
#				+audiovm					# no need for my setup
#				+backup_timestamp				# no need for my setup
#				+bootmode					# no need for my setup
#				+debug						# no need for my setup
#				+default_user					# no need for my setup
#				+default_denied					# no need for my setup
#				+dns						# no need for my setup
#				+gateway					# no need for my setup
#				+gateway6					# no need for my setup
#				+icon						# no need for my setup
#				+include_in_backups				# no need for my setup
#				+ip						# no need for my setup
#				+ip6						# no need for my setup
#				+kernelopts					# no need for my setup
#				+klass						# no need for my setup
#				+mac						# no need for my setup
#				+management_dispvm				# no need for my setup
#				+qrexec_timeout					# no need for my setup
#				+shutdown_timeout				# no need for my setup
#				+start_time					# no need for my setup
#				+stubdom_mem					# no need for my setup
#				+stubdom_uuid					# no need for my setup
#				+stubdom_xid					# no need for my setup
#				+updateable					# no need for my setup
#				+visible_gateway				# no need for my setup
#				+visible_gateway6				# no need for my setup
#				+visible_ip					# no need for my setup
#				+visible_ip6					# no need for my setup
#				+visible_netmask				# no need for my setup
#				+xid						# no need for my setup

# admin.vm.property.GetAll 	* 						sys-gui-vnc 	@adminvm 					allow
# admin.vm.property.GetAll 	* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.property.GetDefault 	+bootmode 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+guivm 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+audiovm 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+virt_mode 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+installed_by_rpm 				sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+memory 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+maxmem 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+stubdom_mem 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.property.GetDefault 	+vcpus 						sys-gui-vnc 	@anyvm 						allow
admin.vm.property.GetDefault 	+kernel 					sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+kernelopts 					sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+debug 						sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+default_user 					sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+qrexec_timeout 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+shutdown_timeout 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+autostart 					sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+include_in_backups 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+backup_timestamp 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+default_dispvm 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+management_dispvm 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+updateable 					sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+devices_denied 				sys-gui-vnc 	@anyvm 	 					allow
admin.vm.property.GetDefault 	+keyboard_layout 				sys-gui-vnc 	@anyvm 	 					allow

# admin.vm.property.Help 		+ 						sys-gui-vnc 	@anyvm 						allow # no need

# admin.vm.property.HelpRst 		+ 						sys-gui-vnc 	@anyvm 						allow # no need

# admin.vm.property.Reset	 	+ 						sys-gui-vnc 	@anyvm 						allow # no need

admin.vm.property.List	 	* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.feature.Get 		+preload-dispvm-threashold 			sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+menu-favorites 	 			sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+gui-default-secure-copy-sequence 		sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+gui-default-secure-paste-sequence 		sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+last-updates-chec	 			sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+updates-available	 			sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.Get 		+default-menu-items	 			sys-gui-vnc 	@type:TemplateVM:AppVM 				allow
admin.vm.feature.Get 		+menu-items 		 			sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM 			allow
admin.vm.feature.Get 		+appmenus-dispvm 		 		sys-gui-vnc 	@type:AppVM:DispVM 				allow
admin.vm.feature.Get 		+preload-dispvm 		 		sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+internal 		 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+gui-events-max-delay 	 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+servicevm 		 			sys-gui-vnc 	@type:DispVM 					allow
admin.vm.feature.Get 		+service.clocksync 		 		sys-gui-vnc 	@type:DispVM 					allow
admin.vm.feature.Get 		+service.minimal-netvm 		 		sys-gui-vnc 	@type:DispVM 					allow
admin.vm.feature.Get 		+selinux 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+qrexec 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+kicksecure 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+whonix-gw 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-feature.keyboard-layout 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-feature.memory-hotplug 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+os 		 				sys-gui-vnc 	@type:TemplateVM:StandaloneVM 			allow
admin.vm.feature.Get 		+supported-service.modem-manager 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.apparmor 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+apparmor 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.no-qubesincoming-cleanup 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.crond 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.updates-proxy-setup 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.minimal-usbvm 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.network-manager 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.blueman 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.qubes-updates-proxy 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.clocksync 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.qubes-network 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.gui-agent-clipboard-wipe 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.cups 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.guivm-gui-agent 	 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.qubes-firewall 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.pipewire 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.meminfo-writer 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.minimal-netvm 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.qubes-update-check 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.PdfConvert 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.ResizeDisk 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.StartApp 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.VMRootShell 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.ShowInTerminal 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SetDateTime.anondist 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.WaitForNetworkUplink 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.VMShell 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.VMRootExec 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.UpdatesProxy.anondist  	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.sdwdate-gui.ConnectCheck 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.UpdatesProxy 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.Restore 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.GetImageRGBA 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.TemplateDownload 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.UpdateAppMenusFor 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SyncNtpClock.anondist 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SetDateTime 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SuspendPreAll 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SelectFile 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.RestoreById 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.WaitForSession 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SuspendPost 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.GpgImportKey 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.Gpg 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.InstallUpdatesGUI 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.RegisterBackupLocation 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.USBDetach 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.GuiVMSession 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.Filecopy 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SuspendPre 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.Backup 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.WaitForRunningSystem 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.PostInstall 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.GetAppmenus 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.USB 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.GetDate 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.OpenURL 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SaltLinuxVM 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SuspendPostAll 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SetDateTime.anondist-orig 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.VMExec 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.VMExecGUI 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.OpenInVM 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.TemplateSearch 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.USBAttach 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SetMonitorLayout 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.DetachPciDevice 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.SelectDirectory 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+os-distribution 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+os-distribution-like 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.kernelopts.sysmaint		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.kernelopts.unrestricted  		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.kernelopts.user 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.default-user.sysmaint  		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.name.sysmaint 	 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.name.unrestricted 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.name.user 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.active 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+boot-mode.appvm-default 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+os-version 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+os-eol 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+qubes-agent-version 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+gui 		 				sys-gui-vnc 	@type:TemplateVM:StandaloneVM 			allow
admin.vm.feature.Get 		+qubes-firewall 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+vmexec 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-name 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-epoch 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-version 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-release 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-reponame 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-buildtime 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-installtime 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-license 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-url 		 			sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-summary 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+template-description 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+updates-available 	 	 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+last-updates-check 		 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.dummy-psu 		 	sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-service.dummy-backlight 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.InputTablet 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.Notifications 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.InputMouse 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+supported-rpc.qubes.InputKeyboard 		sys-gui-vnc 	@type:TemplateVM 				allow
admin.vm.feature.Get 		+rpc-clipboard 	 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+stubdom-qrexec 		 		sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+audio-model 	 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+timezone 	 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+no-monitor-layout  				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+gui-emulated 	 				sys-gui-vnc 	@type:StandaloneVM 				allow
admin.vm.feature.Get 		+service.lightdm 	 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+service.guivm 	 				sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+service.guivm-vnc 	 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+service.dummy-psu 	 			sys-gui-vnc 	@type:AppVM 					allow
admin.vm.feature.Get 		+service.blueman 	 			sys-gui-vnc 	@type:AppVM 					allow

admin.vm.feature.CheckWithTemplate +internal 			 		sys-gui-vnc 	@anyvm 						allow
admin.vm.feature.CheckWithTemplate +gui 			 		sys-gui-vnc 	@anyvm  					allow

admin.vm.feature.CheckWithNetvm * 			 			sys-gui-vnc 	@dispvm:@tag:network-parent 			allow

admin.vm.feature.CheckWithAdminVM * 			 			sys-gui-vnc 	@adminvm 					allow

admin.vm.feature.CheckWithTemplateAndAdminVM * 		 			sys-gui-vnc 	@adminvm 					allow
admin.vm.feature.CheckWithTemplateAndAdminVM * 		 			sys-gui-vnc 	@type:TemplateVM 				allow

admin.vm.property.Remove	* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.property.Set	 	* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.notes.Get 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.notes.Set 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.tag.List 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.tag.Get 		+tagname 					sys-gui-vnc	@anyvm 						allow

admin.vm.tag.Remove 		+tagname 					sys-gui-vnc 	@anyvm 						allow

admin.vm.tag.Set 		+tagname 					sys-gui-vnc 	@anyvm 						allow

admin.vm.firewall.Get 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.firewall.Set 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.firewall.Reload 	* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.device.pci.Attach 	* 						sys-gui-vnc 	@adminvm 					allow
admin.vm.device.block.Attach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Attach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Attach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Attach 	* 						sys-gui-vnc  	@anyvm 						allow


admin.vm.device.pci.Detach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Detach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Detach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Detach 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Detach 	* 						sys-gui-vnc   	@anyvm 						allow

admin.vm.device.pci.Assign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Assign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Assign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Assign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Assign 	* 						sys-gui-vnc   	@anyvm 						allow

admin.vm.device.pci.Unassign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Unassign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Unassign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Unassign 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Unassign * 						sys-gui-vnc   	@anyvm 						allow

admin.vm.device.pci.Set.required * 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Set.required * 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Set.required * 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Set.required * 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Set.required * 						sys-gui-vnc   	@anyvm 						allow

admin.deviceclass.List 		+block 				 		sys-gui-vnc 	@adminvm 					allow
admin.deviceclass.List 		+pci 				 		sys-gui-vnc 	@adminvm 					allow
admin.deviceclass.List 		+usb 				 		sys-gui-vnc 	@adminvm 					allow
admin.deviceclass.List 		+mic 			 			sys-gui-vnc 	@adminvm 					allow
admin.deviceclass.List 		+webcam 			 		sys-gui-vnc 	@adminvm 					allow
admin.deviceclass.List 		+block 				 		sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.deviceclass.List 		+pci 				 		sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.deviceclass.List 		+usb 				 		sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.deviceclass.List 		+mic 				 		sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow
admin.deviceclass.List 		+webcam 			 		sys-gui-vnc 	@type:TemplateVM:AppVM:DispVM:StandaloneVM 	allow

admin.vm.device.pci.Available 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Available * 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Available 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Available 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Available * 						sys-gui-vnc   	@anyvm 						allow

admin.vm.device.pci.Assigned 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Assigned 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Assigned 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Assigned 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Assigned * 						sys-gui-vnc   	@anyvm 						allow

admin.vm.device.pci.Attached 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.block.Attached 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.usb.Attached 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.mic.Attached 	* 						sys-gui-vnc  	@adminvm 					allow
admin.vm.device.webcam.Attached * 						sys-gui-vnc 	@adminvm 					allow


admin.pool.List 		* 						sys-gui-vnc 	@adminvm 					allow

admin.pool.ListDrivers 		* 						sys-gui-vnc 	@adminvm 					allow

# admin.pool.Info 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Add 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Set.revisions_to_keep * 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.ListSnapshots 	* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Snapshots 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Revert 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Resize 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.Import 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.CloneFrom 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

# admin.pool.CloneTo 		* 						sys-gui-vnc 	@adminvm 					allow # no need to manage dom0

admin.vm.pool.List 		* 						sys-gui-vnc 	@anyvm 						allow

admin.vm.pool.Info 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Info 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Info 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Info 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.Set.revisions_to_keep +root 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Set.revisions_to_keep +private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Set.revisions_to_keep +volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Set.revisions_to_keep +kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.ListSnapshots 	+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ListSnapshots 	+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ListSnapshots 	+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ListSnapshots 	+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.Snapshots 	+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Snapshots 	+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Snapshots 	+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Snapshots 	+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.Revert 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Revert 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Revert 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Revert 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow


admin.vm.pool.Resize 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Resize 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Resize 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Resize 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.Import 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Import 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Import 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Import 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.ImportWithSize 	+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ImportWithSize 	+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ImportWithSize 	+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.ImportWithSize 	+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.Clear 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Clear 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Clear 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.Clear 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.pool.CloneFrom 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.pool.CloneFrom 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.pool.CloneFrom 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.pool.CloneFrom 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.pool.CloneTo 		+root 						sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.CloneTo 		+private 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.CloneTo 		+volatile 					sys-gui-vnc 	@anyvm 		 				allow
admin.vm.pool.CloneTo 		+kernel 					sys-gui-vnc 	@anyvm 		 				allow

admin.vm.CurrentState 		* 						sys-gui-vnc 	@adminvm	 				allow
admin.vm.CurrentState 		* 						sys-gui-vnc 	@anyvm 		 				allow

admin.vm.Start 			* 						sys-gui-vnc 	@anyvm 		 				allow

admin.vm.Shutdown 		* 						sys-gui-vnc 	@anyvm 		 				allow

admin.vm.Pause 			* 						sys-gui-vnc 	@anyvm 		 				allow

admin.vm.Unpause 		* 						sys-gui-vnc 	@anyvm 		 				allow

admin.vm.Kill 			* 						sys-gui-vnc 	@anyvm 		 				allow

# admin.backup.Execute 		* 						sys-gui-vnc 	@adminvm 	 				allow # no need

# admin.backup.Info 		* 						sys-gui-vnc 	@adminvm 	 				allow # no need

# admin.backup.Cancel 		* 						sys-gui-vnc 	@adminvm 	 				allow # no need

# admin.vm.Stats 		* 						sys-gui-vnc 	@adminvm 	 				allow # vm-stats

When I try to log in from my laptop, my screen looks like this:

Screenshot
Screenshot2560×1405 282 KB

While I don’t have sys-gui-vnc to sys-gui-vnc policies in there, I can confidently say they didn’t work for any error, no matter their precedence.
